ST-3213 PON Power Meter


High bandwidth fiber networks require stable infrastructures. Proper installation and maintenance of fiber is essential to minimize network failure. Optical Power Meter is required for fiber status checking, advanced diagnostics and troubleshooting. OPM is a tool for measuring the precision power of equipment or optical signal passing through the fiber as well as determining the amount of optical signal loss.


SKU:
Category: Testers & Tools
Brand: Sunma
You can rate also
Users rated:

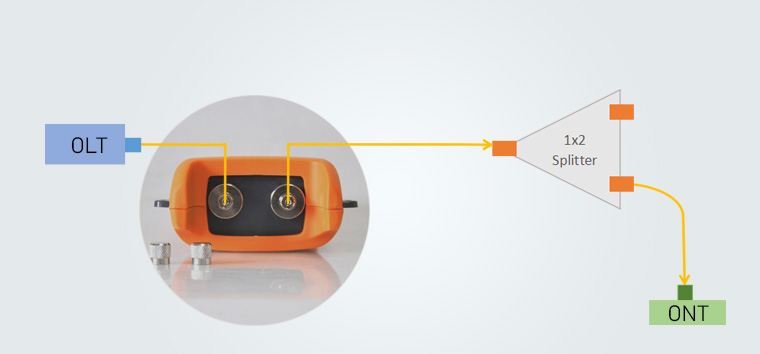

Sunma PON Power Meter is specifically designed to measure FTTx networks. It is capable of simultaneously testing and measuring data, video and audio signals (1490nm, 1550nm, 1310nm). The PON Power Meter ST-3213 is an essential tool for maintaining PON projects.

پاورمتر نوری ST-3213 PON


Specifications

 Measurement Range -40dBm~+20dBm
Passing through insertion Loss <1.5dB
Linearity ±0.1dB
Measurement Range -70dBm~+6dBm
OPM Connector FC/SC/ST
Auto-off Function Supported
Max Output power 15dBm
Threshold 10 different Sets
Resolution 0.01dB



Power Supply 3x1.5V AA battery
Fiber Type SM 9/125um
Measurement Unit dB/dBm/xW
Weight 424g
Storage temperature -25℃~70℃
Operating Temperature -10 to 60°C

Features



پاورمتر نوری ST-3213 PON video, Voice and data signal synchronous measurement

simultaneous measurement for all three wavelengths on the fiber (1490nm,
  1550nm,1310nm)

• Burst mode measurement of 1310nm upstream

• PC connect: threshold setting , data transfer, wavelength calibration

• USB communication port to data transfer to a PC.1000. measurement items can
  be saved in ST-3213 PON power meter or computer for data review

• Professional design, high sensitivity, Lightweight

Shatter-Resistant Sleeve Protect the Power Meter from falling and shocking •


Standards

پاورمتر نوری ST-3213 PON
